Eyepiece |
Wide Field Plan-scope Eyepiece: WF10X/18mm; Total Magnification: 40X-640X |
|
Objective |
Achromatic Objectives: 4X,10X,40X(S) |
|
Head |
Monocular Head, 45°Inclined, 360°Rotatable |
|
Stage |
Double layers Mechanical Stage: 95X105mm, moving range: 50X20mm |
|
Condenser |
Single Lens Condenser: N.A.0.65; Φ2-Φ30mm Iris Diaphragm |
|
Focusing Adjustment |
Coaxial Coarse and Fine Focusing Adjustable Mechanism: 17mm |
|
Illumination |
Up and bottom LED Lamp |
|
Optional |
1.WF16X, WF20X; 2.Rechargeable Batteries 3.Top LED Lamp |
|
Net Weight |
1.5kg |
Package
1set/Foam + Inner Carton
6sets/Outer Carton, Gross Weight: 12KG
Carton Dimension: 55X49X38cm

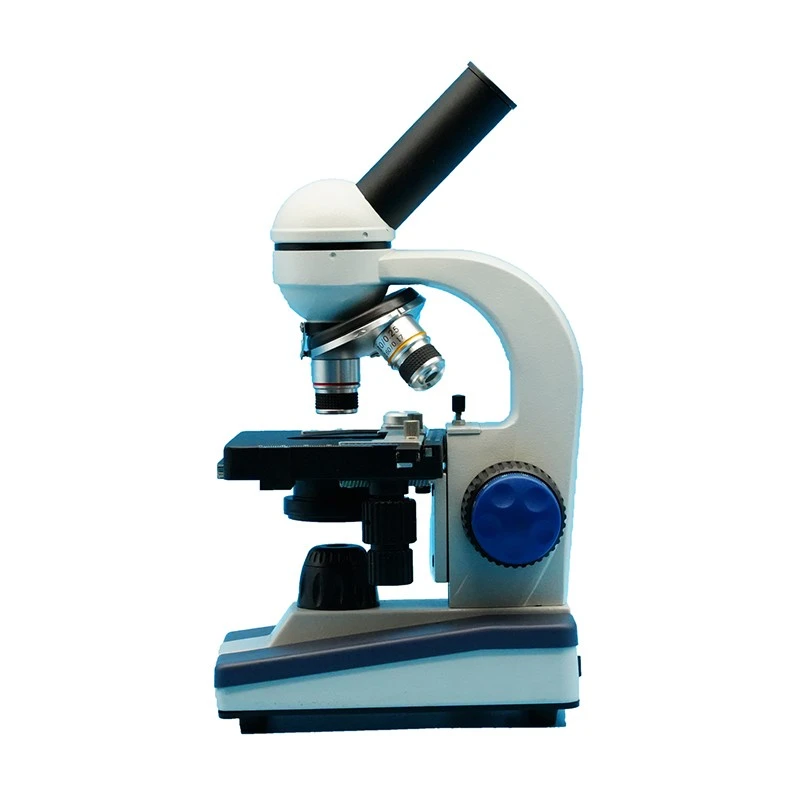

A reliable and high-quality microscope is a must-have for any teacher. The xsp-23L monocular microscope is a top-of-the-line option for those in need of an advanced and functional piece of equipment.
This microscope comes equipped with achromatic objectives, including a 4X, 10X, and 40X(S), providing unparalleled clarity and accuracy when observing samples. The monocular head is inclined at a 45-degree angle, making it comfortable for extended periods of use, and can also rotate a full 360 degrees for added versatility.
One of the standout features of the xsp-23L is its double layers mechanical stage, measuring 95X105mm with a moving range of 50X20mm. This feature allows for precise control and adjustment of samples, providing user with the ability to view and study even the smallest details.
In addition to its advanced technical features, the xsp-23L is also designed with ergonomic considerations, including an adjustable focus and a comfortable grip for easy and stable use.
Overall, the xsp-23L offers an exceptional combination of technical precision and practical usability, making it an ideal choice for anyone looking for a reliable and effective monocular microscope. Whatever your research or scientific needs may be, the xsp-23L's advanced features and high-quality design are sure to help you achieve your goals with confidence and clarity.
