Eyepiece |
Wide Field Plan-scope Eyepiece: WF10X/18mm; Total Magnification: 40X-640X |
|
Objective |
45mm DIN Achromatic Objective: 4X,10X,40X(S) |
|
Head |
Monocular Head, 45°Inclined, 360°Rotatable |
|
Stage |
Plain Stage With Paired Clips: 115*125mm |
|
Condenser |
Single Lens Condenser: N.A.0.65; Five-Stop Dial Diaphragm |
|
Focusing Adjustment |
Coaxial Coarse and Fine Focusing Adjustable Mechanism: 14mm |
|
Illumination |
Optional: 6V/20W Halogen Lamp, LED Lamp |
|
Optional |
1.WF16X, WF20X; 2.Semi Plan Objective, Plan Objective; 3.Rechargeable Batteries |
|
Net Weight |
2.2kg |
Package
1set/Foam + Inner Carton
4sets/Outer Carton, gross weight: 11KG
Carton Dimension: 54X39X40cm

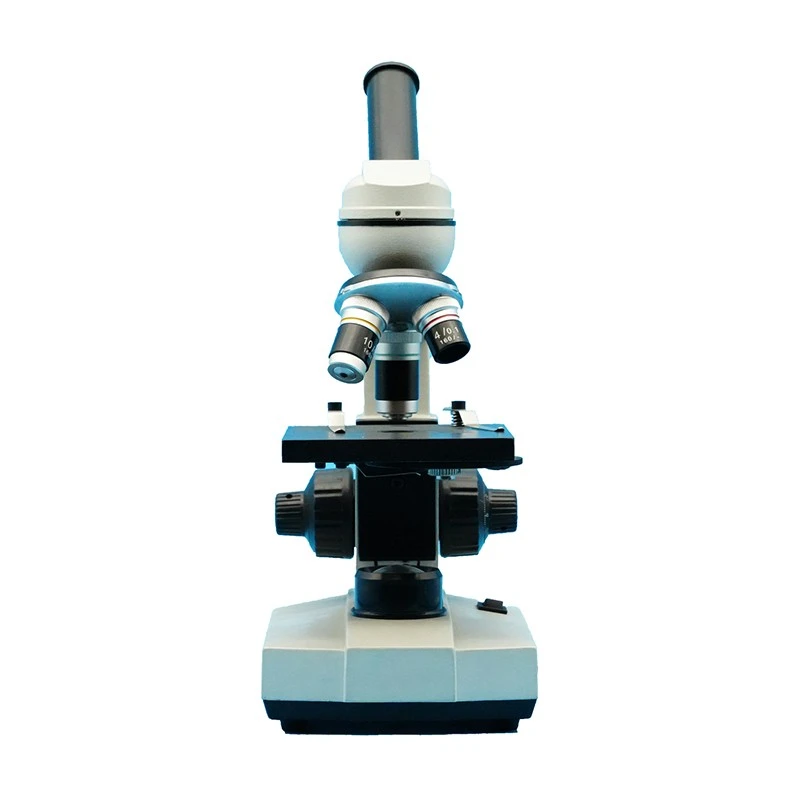

The XSP-104M1 monocular microscope is an exceptional scientific tool that is designed to offer precise and clear imaging for laboratory applications and research purposes. With a compound microscope magnification of 640X, this device is used to reveal the detailed structure of small objects that cannot be seen with the naked eye.
This microscope features a single-layer platform that offers stability and durability during use. The six-hole disc diaphragm is designed to regulate light transmission, which is critical in achieving clear and consistent imaging. Additionally, the adjustable electric-light source is a significant addition to this microscope since it allows the user to optimize the contrast and clarity of the view through the lens.
The plain stage with paired clips on the XSP-104M1 monocular microscope is 115mm by 125mm, which is an ideal size for most laboratory applications. The clips are used to hold the slide in place during the study, ensuring that there is no distortion or movement that can cause the sample to be blurry.
The single-lens condenser is designed with an N.A of 0.65 and is ideal for use in low-contrast situations. This feature enables this microscope to be used in a wide range of scientific applications. Additionally, the five-stop dial diaphragm allows the user to adjust the light intensity and improve the contrast of the image under study, further enhancing the viewing experience.
In summary, the XSP-104M1 monocular microscope is an exceptional tool for laboratory applications and research purposes. This device offers precise imaging to reveal the detailed structures of small objects and is designed to be stable, durable and versatile. Its features such as the six-hole disc diaphragm, adjustable electric-light source, plain stage with paired clips and single-lens condenser with N.A of 0.65 make it the ideal microscope for any scientific laboratory application.
