Eyepiece |
Wide Field Plan-scope Eyepiece: WF10X/18mm |
|
Objective |
45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(S,Oil) |
|
Head |
Articulated Free Trinocular Head, Interpupillary Distance: 55-75mm; 30° Inclined , 360°Rotatable |
|
Stage |
Double Layers Mechanical Stage: 130X140mm, Moving Range X-Y: 70X50mm |
|
Condenser |
ABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter |
|
Focusing Adjustment |
Coaxial Coarse and Fine Focusing Adjustable Mechanism: 20mm, Precision:0.002mm |
|
Illumination |
Optional: Built-in Adjustable Brightness 1W LED lamp; 6V/20W Halogen Lamp |
|
Optional |
1.WF10X, WF16X; 2.Semi Plan Objective, Plan Objective; 3.Rechargeable Batteries 4.Electronic Eyepiece 1.3Mp, 3.0Mp |
|
Net Weight |
5.8kg |
Package
2sets/Foam + Carton
Carton Dimension: 53X37X49cm, grosee weight: 15KG

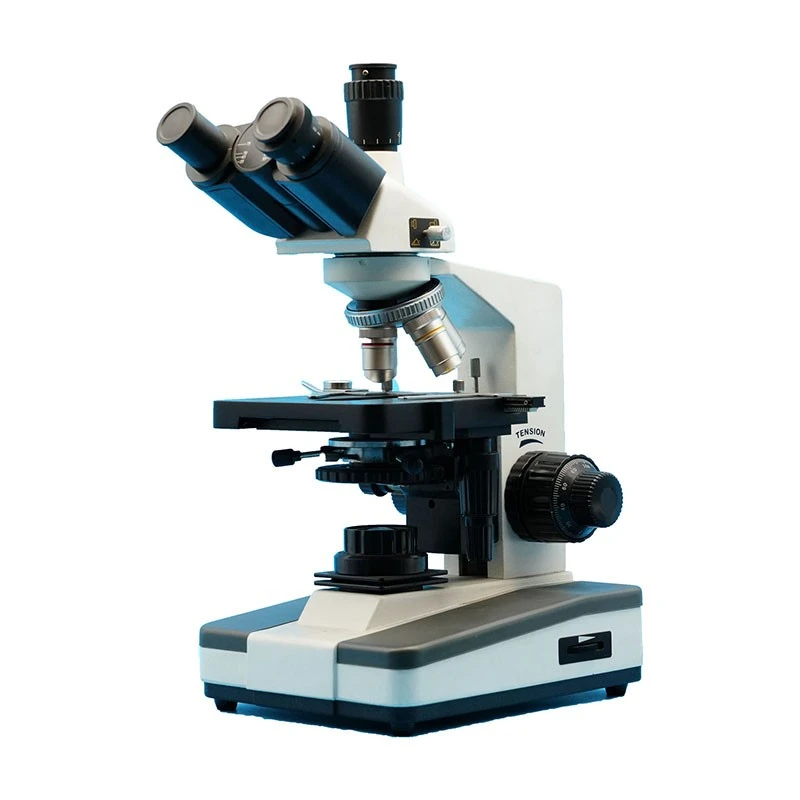

The XSP-2102T compound trinocular microscope is a powerful tool for scientific research and education. With its high-quality optical glass, it can magnify objects up to 1600 times, providing clear and sharp images for detailed analysis and observation.
One of the key features of this microscope is its adjustable Abbe condenser, This is especially important when using high magnification lenses, as it ensures that you achieve the best possible resolution, contrast, and clarity.
The XSP-2102T also comes with a trinocular head, which means that you can connect a camera or video recorder to capture images and videos of your samples. This is a great option for documenting your research or teaching materials, as well as for sharing your work with others.
Other notable features of this microscope include a sturdy and adjustable stand, a range of interchangeable lenses, and a built-in fine focus knob for precision adjustments. It is suitable for use in a variety of settings, including laboratories, classrooms, and medical facilities.
In terms of maintenance, the XSP-2102T is easy to clean and care for, and comes with a range of accessories to help you get the most out of your microscope. These include a dust cover, user manual, and cleaning kit.
Overall, the XSP-2102T compound trinocular microscope is a high-quality and versatile tool for scientific research and education. Whether you are a student, researcher, or educator, this microscope is sure to help you achieve your goals and advance your understanding of the natural world.
